T940 hollow UPVC roofing sheet is HESU’s double-layer profiled panel with a listed effective coverage width of 940 mm. Current thickness options run from 6 mm to 12 mm. Internal webs connect the upper and lower skins and divide the section into multiple cavities. This structure changes how the panel carries local forces and transfers heat and sound. It does not, by itself, prove an insulation value, sound reduction, structural span, fire rating, or walkability.
T940 belongs to HESU’s broader UPVC roofing sheet family. Its hollow construction makes it a separate product from the solid T1130 corrugated profile. The current T940 drawing controls the geometry, side lap, coverage, supports, fasteners, accessories, and production specification.
T940 Hollow UPVC Roofing Sheet Specifications
The table separates HESU’s currently listed values from details that depend on a current drawing or written order. This distinction matters because similar hollow sheets can have different edge profiles, cavity layouts, and installed coverage.
| Specification | Current T940 scope |
|---|---|
| Product type | Double-layer hollow UPVC roofing sheet |
| Profile designation | T940 |
| Effective coverage width | 940 mm |
| Listed thickness options | 6 mm to 12 mm |
| Total sheet width | Confirm on the current HESU T940 drawing |
| Internal cavity geometry | Controlled by the approved cross-section and production sample |
| Unit weight | Confirm for the selected thickness and construction |
| Cut length and color | Confirm against the current production schedule |
| Side and end laps | Set by the T940 drawing, roof slope, and exposure |
| Support and fixing layout | Set by product guidance and project structural requirements |
| Thermal and acoustic values | Require a stated calculation or matching test specimen and method |
| Non-fragility, fire, and load data | Require matching assembly evidence; no universal value is stated here |
The 940 mm dimension is effective installed coverage. It is not a substitute for total sheet width. Effective coverage remains after the designed side lap, so it is the correct starting value for roof-area calculations. The drawing must still show how the two side edges engage and where the fixing lines sit.
What Does the T940 Hollow Cross-Section Do?

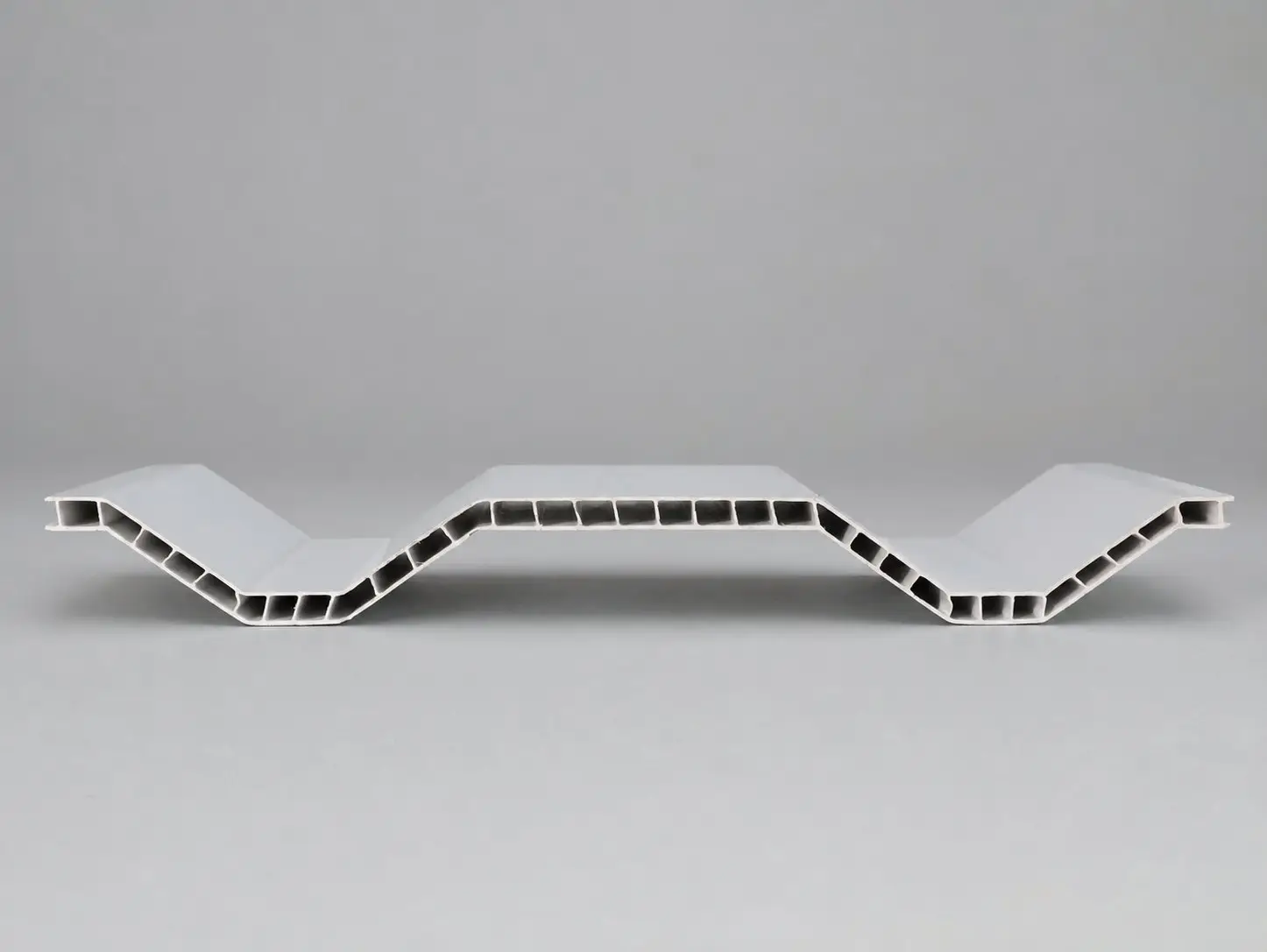

The T940 section has an upper skin, a lower skin, and a series of connecting webs. Together, these parts create the profiled panel. The webs keep the skins separated and transfer forces between them. The cavities reduce the amount of solid material across the full thickness and introduce enclosed air spaces.
That geometry changes local behavior. Pressure on the upper skin moves through nearby webs toward the lower skin and support. A load placed between stable supports can bend the complete section. A concentrated washer can also deform one skin or crush nearby webs when tightening pressure is too high.
Thickness alone does not describe this behavior. Two panels marked 10 mm can differ in skin thickness, web spacing, web angle, profile depth, formulation, unit weight, and edge design. A meaningful comparison needs the complete cross-section and matching test condition, not one nominal dimension.
The side lap is part of the same structural geometry. It must nest without forcing one edge out of shape. A lap that looks acceptable from above can still leave uneven contact below. This can disturb drainage, fixing pressure, and movement along the sheet.
How Do the Cavities Affect Heat and Sound?
Internal air spaces alter the path for heat transfer through a T940 panel. Heat must pass through the solid skins, internal webs, cavity air, surface boundaries, fasteners, and the rest of the roof build-up. The webs also act as repeated solid bridges between the two skins.
For that reason, HESU does not convert the word “hollow” into a universal R-value, U-value, or indoor temperature reduction. A defensible thermal result needs defined material data, cavity geometry, heat-flow direction, surface conditions, fasteners, ventilation, ceiling layers, and a stated method. HESU’s heat-insulation roofing sheet guide explains why the complete roof assembly matters in hot climates.
The cavities also change panel vibration and airborne sound transmission. They do not guarantee a fixed decibel reduction or a quiet interior. Rain impact, sheet length, supports, fasteners, ceiling construction, room absorption, openings, and flanking paths can all affect the installed result.
Sound claims therefore need a matching specimen, mounting condition, test method, and reported result. Laboratory data can compare defined elements, but field performance can differ when boundary conditions and sound paths change. T940’s structure gives engineers a mechanism to evaluate, not a number to assume.
Why UPVC Formulation Still Matters
UPVC means unplasticized polyvinyl chloride. The rigid vinyl body supports a stable formed profile, while stabilizers, pigments, processing aids, and modifiers tune production and service behavior. The material label does not reveal the complete formulation.
T940’s hollow shape amplifies the need for consistent material flow. The melt must form both skins and every internal web without gaps or unstable thickness. Cooling must then hold the cross-section while the panel leaves the die and develops its final profile.
The difference between PVC and UPVC also depends on the product formulation and structure. HESU’s technical comparison of PVC and UPVC roofing sheets separates the material-family names from profile, thickness, heat movement, and application conditions.
How HESU Controls a Hollow Roofing Profile
A hollow sheet cannot be judged from its top surface alone. HESU controls the visible profile and the hidden cross-section as one production component. Relevant checks include overall shape, effective coverage, skin continuity, web continuity, cavity consistency, edge condition, and fit between adjacent samples.
The production line must keep material flow and cooling balanced across the sheet. An unstable web can narrow a cavity or shift support between the skins. Uneven cooling can introduce twist. Either condition can later appear as poor stacking, difficult lap nesting, or local distortion during fixing.
Cut edges make the internal structure visible. HESU can compare the section at more than one position rather than relying on a convenient center sample. The approved cross-section should connect to the written profile, thickness, color, and production record.
The HESU roofing sheet factory also controls handling after forming. Hollow sheets need level support and even restraint. Concentrated straps, rough dragging, or an uneven bundle can deform exposed edges and webs before installation. The factory image above shows HESU’s wider sheet-handling environment; it is not presented as a documented T940 production run.
How the T940 Drawing Controls the Roof System
The current drawing is the link between the product and the roof. It should identify total width, effective coverage, profile shape, side-lap direction, edge details, fixing zones, and compatible accessories. Project design then sets roof slope, purlin spacing, wind actions, drainage length, end laps, and edge-zone fixing.
Supports must sit where the selected profile can transfer load without harmful deformation. A universal purlin spacing cannot be copied from another UPVC sheet. Thickness, cavity geometry, sheet length, roof slope, wind exposure, and structural actions all change the condition.
Fasteners must seal the roof without crushing the hollow section or locking its thermal movement. Hole preparation, washer size, screw alignment, support contact, and tightening pressure need a coordinated detail. More pressure is not automatically a better seal.
UPVC expands and contracts as roof temperature changes. Longer sheets accumulate more movement. Walls, ridges, penetrations, flashings, and tight fasteners can obstruct that movement. The fixing system must preserve weather sealing while allowing the movement defined for the selected roof.
T940 roofing must not be treated as a walking surface. No non-fragility classification is claimed for the sheet or an installed assembly. Roof work requires competent planning, controlled access, fall protection, and compliance with local safety requirements.
Where the T940 Profile Can Fit
T940 can form part of industrial, agricultural, storage, coastal, and selected renovation roofs when its profile and evidence match the building conditions. The hollow structure is most relevant where panel construction, corrosion behavior, and roof-system design matter together.
- Workshops and warehouses: the profiled surface creates drainage channels, while the hollow section changes panel behavior compared with a solid sheet.
- Agricultural buildings: the UPVC body avoids sheet-body rust, but ventilation, condensation, chemical exposure, fasteners, and supports still control the roof.
- Coastal structures: UPVC does not corrode like exposed steel. Metal screws, washers, purlins, and flashings still need exposure-appropriate materials.
- Selected renovation roofs: a new covering requires a straight and stable frame. Existing purlins, slope, drainage, junctions, and added loads remain project inputs.
T940 is not automatically suitable for a roof that needs transparent daylighting, a Spanish tile appearance, a verified fire classification, a documented non-fragile assembly, or structural values outside its available evidence. Those conditions may require another HESU profile or another roofing system.
Five Evidence Levels for T940 Claims
A clear evidence ladder prevents a visible feature from becoming an unsupported performance promise.
| Evidence level | What it can establish |
|---|---|
| Product observation | The sample has two skins, internal webs, cavities, and a defined profile. |
| Controlled drawing | The nominal geometry, coverage, edges, fixing zones, and related dimensions. |
| Engineering calculation | A result for stated material data, geometry, loads, boundaries, and assumptions. |
| Laboratory test | A measured result for the tested specimen, mounting, method, and conditions. |
| Installed roof assessment | How the complete building, workmanship, weather, interfaces, and maintenance affect field behavior. |
These levels are connected, but they are not interchangeable. A photograph can verify cavities. It cannot verify a U-value. A sheet test cannot automatically classify every roof assembly. A calculation for one support layout does not control a different building.
T940 Hollow UPVC Roofing Sheet FAQ
What does T940 mean?
T940 is HESU’s designation for a double-layer hollow UPVC roofing profile with a listed effective coverage width of 940 mm. The current HESU drawing defines the full geometry.
Is 940 mm the total sheet width?
No. HESU currently lists 940 mm as effective installed coverage. The total width and side-lap geometry must be confirmed on the current drawing.
Which T940 thicknesses are listed?
The current HESU range lists 6 mm to 12 mm. Final availability, unit weight, cavity construction, length, and color require written confirmation for the production schedule.
Does a hollow UPVC roofing sheet provide insulation?
The cavities alter the heat-flow path, but the word “hollow” does not establish an insulation value. A valid result needs defined product data, roof layers, boundary conditions, fasteners, ventilation, and a stated calculation or test method.
Does T940 reduce rain noise?
The hollow structure changes vibration and sound transmission, but no universal decibel reduction is claimed. A meaningful value needs a matching specimen, support and fixing arrangement, test method, and complete ceiling or room condition.
What purlin spacing does T940 require?
No universal spacing applies to every T940 roof. The current product guidance must be coordinated with thickness, cavity geometry, roof slope, sheet length, wind exposure, loads, and structural design.
Can installers walk on T940 panels?
No walkability or non-fragility claim is made. Treat the roof as fragile unless competent assembly evidence confirms otherwise, and use planned access and fall protection for all roof work.
What information does HESU use for a T940 specification?
HESU uses the building application, roof drawing, slope, support arrangement, required length, thickness, color, quantity, accessories, and destination. The response can then identify the current profile drawing, available production scope, packing, and quotation.
Request the Current T940 Drawing
Send the roof layout and required T940 specification through HESU Contact Us. HESU will confirm the current profile drawing, effective coverage, available thickness, production options, accessories, packing, and quotation scope.
