3-Way Roof Ridge Connector for Synthetic Resin Tiles
A 3-way roof ridge connector, also called a three-way ridge tile, finishes the point where one main ridge and two sloping hip lines meet. The HESU product shown on this page has a Y-shaped, three-branch form designed for a compatible synthetic resin roof tile system. It aligns the junction without treating the intersection as three unrelated cuts.
What this connector does
- Joins three ridge or hip directions at one roof junction.
- Continues the shape and color of a compatible resin ridge system.
- Reduces improvised cutting at a highly visible roof intersection.
- Works as one component alongside the main roof tile, ridge caps, hip tiles, supports, fasteners, and flashing details.
The connector is not a universal cap and does not waterproof a junction by itself. Weather shedding depends on compatible profiles, correct overlaps, stable support, suitable fasteners, roof pitch, and project-specific installation details.
Product identification and selection data
| Product type | Molded three-direction ridge junction accessory |
|---|---|
| Common names | 3-way roof ridge connector, three-way ridge tile, Y-shaped ridge connector |
| Visible geometry | Three branches in a Y-shaped arrangement |
| Typical junction | One main ridge meeting two diagonal hip or sloping ridge lines |
| Roof system | Compatible synthetic resin or Spanish-style roof tile system |
| Profile fit | Not universal; the connector must match the adjoining HESU ridge and hip components |
| Color shown | Red; the project color should be coordinated with the selected main tile and ridge set |
| Dimensions and fixing | Profile-dependent; use the approved drawing and installation guidance for the selected system |
This identification is intentionally based on the visible HESU component and its roof-system role. Dimensions, fastener counts, and material-layer claims are not universal across resin tile profiles and should not be copied from an unrelated three-way ridge tile.
Where is a 3-way ridge connector used?
A 3-way ridge connector is used at the junction of a horizontal main ridge and two diagonal hips, or at another three-direction intersection defined by the roof drawing. This geometry is common on hipped villas, residential roofs, entrance canopies, pavilions, resorts, and other multi-slope roofs built with synthetic Spanish roof tiles.
The roof plan determines the component. A continuous roof peak needs ordinary resin roof ridge tiles; a diagonal line needs a compatible hip or sloping ridge tile; a central four-direction crossing needs a 4-way roof ridge connector. The 3-way connector is reserved for a junction with three adjoining directions.
How the three roof lines meet
Main ridge branch
The upper branch connects with the ridge cap that follows the horizontal roof peak. Its centerline should remain aligned with the main ridge rather than being pulled sideways to compensate for an inaccurate hip line.
Two hip branches
The other branches transition into the two sloping ridge or hip runs. Both sides need consistent alignment, overlap direction, and support so the connector sits naturally instead of being twisted across the junction.
Junction support
The meeting point needs a stable fixing location beneath the connector. The approved support and fastener arrangement must suit the selected HESU profile and the local roof design.
Is this a Y-shaped or T-shaped ridge connector?

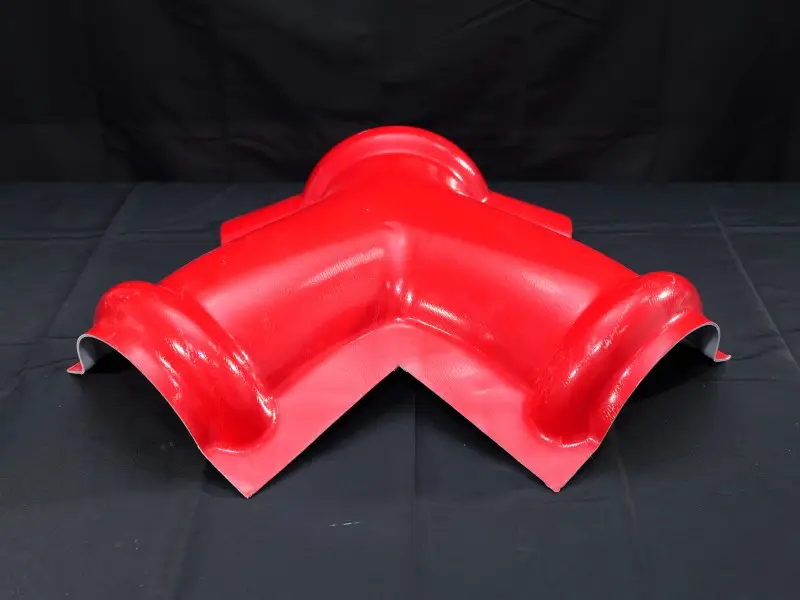

The product photographed on this page is a Y-shaped three-way ridge tile. Its branches spread toward one main ridge and two hip lines. Some roofing suppliers also use “three-way connector” for a T-shaped part where a secondary ridge meets the side of another ridge. Those two geometries are not interchangeable.
| Connector geometry | Typical roof relationship | Selection check |
|---|---|---|
| Y-shaped three-way connector | One main ridge meets two diagonal hips | Confirm all three branch angles against the hipped-roof drawing |
| T-shaped three-way connector | One secondary ridge meets another ridge at a T-junction | Confirm the perpendicular or project-specific intersection angle |
Use the roof drawing and a clear junction image to identify the required shape before checking profile and color. Calling both products “three-way” is not enough to establish compatibility.
Compatibility checks for a clean junction
| Check | Why it matters | What to confirm |
|---|---|---|
| Roof geometry | Three branches must follow the actual ridge and hip directions. | Junction position, branch directions, roof pitch, and symmetry from the roof drawing. |
| Main tile profile | Similar-looking resin tiles can use different wave spacing and step geometry. | Exact HESU tile profile and the accessory family made for it. |
| Adjoining ridge parts | The connector overlaps ridge and hip components, not only the main roof tile. | Ridge-cap shape, hip-tile shape, overlap orientation, and contact area. |
| Support and fixing | A molded connector should not bridge an unsupported junction or be pulled into position by screws. | Support location, approved fastener type, hole preparation, and washer seating. |
| Color and surface | The junction remains visible near the highest roof lines. | Color reference and surface finish across the connector, ridge caps, hip tiles, and main tiles. |
| Weather detail | A connector is part of the water-shedding assembly, not a substitute for full junction design. | Overlap, flashing or closure requirements, prevailing weather exposure, and local installation guidance. |
Dimensions and fixing details vary by roof tile profile. The connector should therefore be matched to the selected roof system rather than chosen from appearance alone. HESU’s broader Spanish roof tile accessories page shows how ridge, edge, end, connector, and fastening parts relate to one another.
Installation coordination at the junction
- Confirm the roof intersection. Mark the main ridge and both hip centerlines from the roof drawing before positioning the accessory.
- Complete the adjoining runs. Align the main roof tiles, main ridge, and two sloping ridge or hip lines so their meeting point is stable and repeatable.
- Dry-fit the connector. Check branch direction, overlap contact, clearance, color, and support location without forcing the molded part.
- Resolve a mismatch before fastening. If the connector rocks, twists, or leaves uneven contact, recheck the selected profile, roof angle, ridge alignment, and support height. Do not use screw pressure to reshape an incompatible part.
- Fix according to approved profile guidance. Use the specified fastener and washer arrangement, prepare holes as required for the resin system, and tighten evenly without distorting the connector.
- Inspect the complete junction. Check all three overlaps, exposed edges, fastener seating, and the intended water path before leaving the roof line.
These steps describe coordination logic, not a universal engineering specification. Structural support, wind design, safe roof access, fastening frequency, sealing, and flashing must follow the approved product profile and local project requirements.
Common fit problems and what they indicate
| Observed problem | Likely issue to check |
|---|---|
| One branch sits higher than the other two | Uneven ridge support, inconsistent hip alignment, or a junction angle that does not match the connector. |
| The connector must be twisted to touch all three ridge parts | Wrong accessory profile, inaccurate centerlines, or mismatched adjoining ridge components. |
| Visible gaps remain below a branch | Insufficient overlap contact, incompatible wave/step geometry, or missing project-specific closure detail. |
| The molded surface deforms around a screw | Overtightening, unsuitable hole preparation, incorrect washer seating, or lack of stable support. |
| The junction color looks inconsistent | Different color reference, surface finish, batch, or material exposure across the accessory set. |
HESU system note: A 3-way connector should be reviewed with the selected resin tile profile and roof geometry. Matching the junction as a system is more reliable than correcting several incompatible parts during installation.
3-way connector compared with related ridge parts
| Component | Roof position | System role |
|---|---|---|
| Ridge cap | Continuous horizontal roof peak | Covers the meeting line between two roof slopes. |
| Hip or sloping ridge tile | Diagonal external roof intersection | Continues the finish from the eave area toward the main ridge. |
| 3-way roof ridge connector | One main ridge meeting two hip directions | Transitions three adjoining ridge lines at one molded junction. |
| 4-way roof ridge connector | Central crossing of four sloping ridge directions | Finishes a four-direction roof intersection. |
| Ridge end or hip starter | Exposed beginning or end of a ridge run | Closes the terminal profile instead of joining multiple directions. |
Match the connector to the roof system
Share the selected HESU resin roof tile profile and the relevant roof-junction drawing when you need help confirming whether the intersection requires a 3-way connector, a 4-way connector, or another ridge component.
FAQ about 3-way roof ridge connectors
What is a 3-way roof ridge connector?
A 3-way roof ridge connector is a molded roof accessory used where three ridge directions meet. In a typical hipped layout, it connects one horizontal main ridge with two diagonal hip or sloping ridge lines.
Is a 3-way connector the same as a normal ridge cap?
No. A normal ridge cap continues along one ridge line. A 3-way connector is a junction piece with three branches, so it must align with several adjoining ridge components at the same point.
Does every hipped roof need a 3-way ridge connector?
No. The roof drawing determines the component. A roof with a main ridge meeting two hips may use a 3-way connector, while a pyramidal roof with four hip directions may require a 4-way connector. Simpler roofs may need only ridge caps and end pieces.
Can a three-way ridge tile fit any synthetic resin roof tile?
No. Compatibility depends on the main tile profile, adjoining ridge and hip shapes, roof angles, overlap direction, support layout, and fixing method. A similar color or appearance does not prove that the parts fit together.
Should the connector be forced into the roof angle?
No. Forcing the connector or pulling it down with fasteners can create distortion and uneven contact. Recheck the roof geometry, support height, component alignment, and selected profile before fastening. Any approved adjustment method must come from the product-specific installation guidance.
Does the connector make the roof junction waterproof?
The connector contributes to weather shedding, but it does not make the junction waterproof by itself. Performance depends on the complete roof assembly, including overlaps, supports, fasteners, washers, closures or flashing where required, roof pitch, and installation quality.
What is another name for a 3-way roof ridge connector?
Common names include three-way ridge tile, 3-way ridge tile, Y-shaped ridge connector, and three-way ridge cap. The name alone does not confirm the geometry or tile profile, so the product image and roof drawing should also be checked.
Is the HESU connector shown here Y-shaped or T-shaped?
The photographed HESU connector is Y-shaped. It is intended for a junction with one main ridge and two hip directions. A T-shaped connector serves a different ridge relationship and should not be substituted without checking the roof geometry and compatible accessory profile.
